| Brand Name: | Honeywell |
| Model Number: | 900CP1-0300 |
| MOQ: | 1 |
| Price: | Negotiable |
| Delivery Time: | 1-3 works |

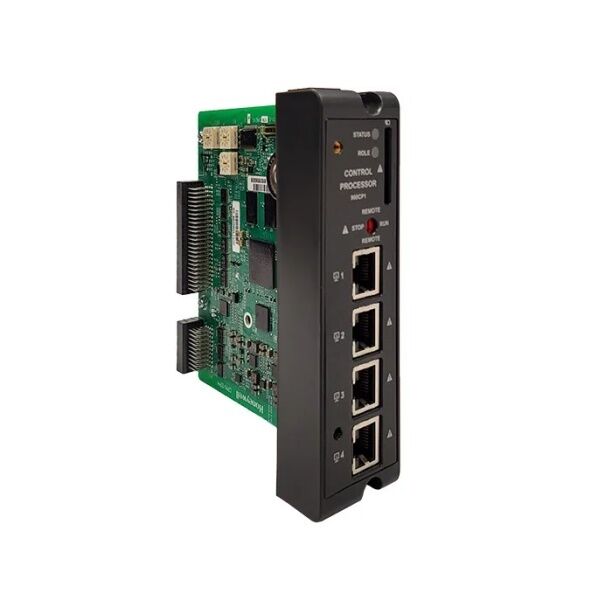

Honeywell 900CP1 - 0300 CPM , CONTROLEDGE 900 ControlEdge PLC Module In Stock
Control Processor Module (900CP1-0200) and Ext. Temp (-40 to 70°C)Model (900CP1-0300) and Control Processor Module (900CP2-0100).
The ControlEdge PLC has a rack based modular hardware design with control processor modules that plug onto different rack options depending on system configuration requirement.
Performance and Capability
| Item | Specification |
| Maximum I/O Modules per controller | 144 |
| Maximum Analog channels per controller | 2304 |
| Maximum Digital channels per controller | 4608 |
| Maximum expansion I/O racks for non-redundant controller | 11 |
| Maximum expansion I/O racks for redundant controller | 12 |
| Command execution time | 85µs per 1000 commands in ST |
Hardware specification and Features
| Item | Specification |
| Processor | Dual Core ARM Cortex-A9 Core (32 bit) 667 MHz |
| User Programming memory, (Flash) | User: 10 MB (Program 5 MB, Data 5 MB). 256 MB (Flash) of (900CP1-0200 and 900CP1-0300). 512MB (Flash) of (900CP2-0100). |
| SD card support | 32GB Class 6 / Class 10 industry standard |
| Running Memory (RAM) | 256MB with Error Correction Code of (900CP1-0200 and 900CP1-0300). 512MB with Error Correction Code of (900CP2-0100). |
| Controller Redundancy | Supported (Hot Standby) |
| Real-Time Clock | 2 weeks of retention after a power loss |
| CPU Watchdog | CPU automatically resets if error is detected |
| Nonvolatile memory data life | 20+ years (no battery required) |
| Real-time clock resolution | 1 ms |
| I/O Scan Time | 10 ms – 3000ms (adjustable per control strategy) |
| Switchover | Internal parameters, variables and outputs are maintained during transition. Switchover time <100 ms |
| Operating Modes | Run Locked; Stop Locked; Remote Running; Remote Stopped |
