0.10% Accuracy Honeywell UDC3500 Digital Controller With 3 Universal Analog Inputs

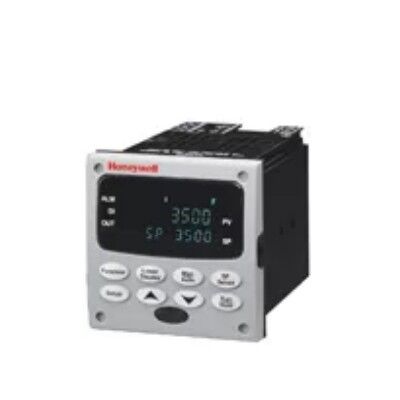

UDC3500 DIN Controller

New Power and Flexibility

The UDC3500 Universal Digital Controller packs new powerful features in the popular 1/4 DIN size. Unmatched application power includes: Infrared (IR) Configuration interface, three universal analog inputs, two loops of control and two Math Algorithms. When these are combined with the

Accutune III™ tuning with fuzzy logic overshoot suppression, the result is price/performance leadership. Application flexibility is assured by the universal analog inputs, universal AC power supply, four digital inputs, a maximum of seven analog and digital outputs, Infrared, RS422/485 Modbus RTU or Ethernet 10Base-T TCP/IP Modbus communication protocols, simple configuration plus total field upgrade capability for any optional feature.

Features

• 3 Universal Analog Inputs (can be configured to operate as 1 Universal and 4 High Level Inputs)

• 0.10% Accuracy

• Fast scanning rate (166ms)

• Up to 3 Analog Outputs

• Up to 5 Digital Outputs

• 4 Digital Inputs

• Math Functions

• Ethernet or RS-485 communication

• Cascade or 2 Loops of control

• Infrared PC & Pocket PC configuration

• Healthwatch Maintenance Tool

• NEMA4X and IP66 front face protection

• Multilanguage prompts

• 1/4 DIN Size

• Easily Field Upgradeable

• Bright, dual displays with multilanguage prompts (in English, French, German, Spanish, or

Italian) make the operator interface easy to read, understand, and operate. Simple keystrokes let you set operating parameters that meet your process control needs.

Every production environment has a different set of needs. Honeywell’s versatile UDC 3500 digital controller delivers unmatched flexibility, power and performance at an affordable cost and is customizable to suit a variety of needs.​

What Is It?

UDC 3500 is a next-generation universal controller in the popular ¼ DIN size. It is available as a single- or dual-loop controller and can be used in wash-down applications. Users benefit from an accuracy of 0.10% and a scanning rate of 166ms.

The UDC 3500 universal controller can be configured with a pocket PC or computer and is very easy to operate and maintain. Its universal spare parts further add to the ease of maintenance. The universal digital controller possesses adequate power and cost effectively brings with it several advanced features such as enhanced set point programming, fast scanning and on-board diagnostics.

How Does It Work?

UDC3500 Universal Digital Controller is a 1/4 DIN controller available as a single- or dual-loop controller with advanced features such as enhanced set point programming, fast scanning and on-board diagnostics and a scanning rate of 166ms.

What Problems Does It Solve?

Manufacturing processes need tailor-made and effective process control tools, for monitoring and controlling process variables, at low prices to optimize their operations. Honeywell’s UDC 3500 DIN Controllers address these requirements simply and effectively.
