| Brand Name: | Honeywell |
| Model Number: | STT700 |
| MOQ: | 1 |
| Price: | Negotiable |
| Delivery Time: | 2 to 3 working days |

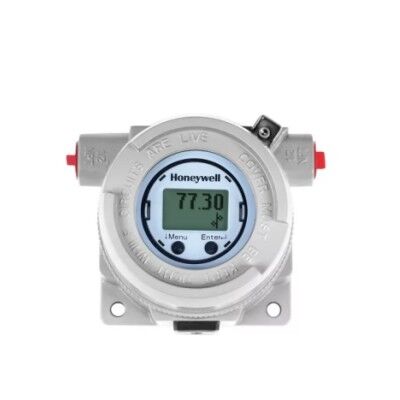

SmartLine STT700
Part of the SmartLine® family of products, the SmartLine STT700 is a high-performance temperature transmitter offering high accuracy and stability over a wide range of process and ambient temperatures. SmartLine easily meets the most demanding needs for temperature measurement applications.Best in Class Features: The STT700 is single or a dual input temperature transmitter that supports millivolt, thermocouple and RTD sensors. It is available with either HART or DE protocol output.
High performance
o Digital accuracy up to 0.15 Deg C for Pt100
o Stability up to ±0.05% of URL per year for ten years
o 500 mSec update time (single input)
o 1 Sec update time (dual input)Reliable measurement
o Built in galvanic isolation
o Sensor break detection
o Comprehensive on-board diagnostic capabilities
o Full compliance to SIL 2/3 requirements.
o Available with 4 year warranty
o Supports Namur 89 Wire break
o Direct entry of Callendar-van Dusen coefficients
Lower Cost of Ownership
o Universal input
o Dual sensor option
o Polarity insensitive loop wiring
Mounting Options:
o Direct sensor head mounting in DIN Form A aluminum housing.
o Other mounting options available include wall, pipe, DIN Rail or single compartment field housing
STT700 is a direct replacement for the STT250 and thus is suitable for the majority of process applications including those for control and safety while delivering excellent performance at a low installed cost.
SmartLine STT700 Temperature Transmitter offers the following features:
SmartLine platform features including SmartLine Connection Advantage when used with Experion
Single input supporting up to 4-wire RTD sensor connection
Dual input option supporting up to two (2) 3-wire RTD sensor connections
Digital accuracy up to 0.15°C for RTD
Callendar-Van Dusen sensor constants input
HART7 communications
DE communications
Field housing, head mount, panel mount and DIN rail mounting options
Transmitter and sensor diagnostics
FM / CSA / ATEX / IEC Ex approvals
Full compliance with SIL 2 / 3 requirement
Up to a 4-year warranty
