Flush Mount Pressure Transmitters Honeywell SmartLine ST700 For Industrial Applications

Flush Mount Pressure Transmitters - SmartLine ST700

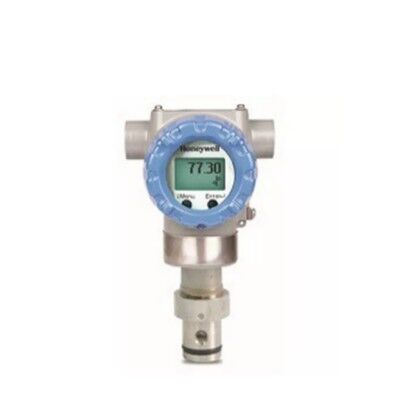

Part of the SmartLine® family of products, the STG73P is a gauge pressure transmitter with a flush mounted diaphragm. Installed using a 1” sleeve welded to the process piping the diaphragm face may be situated flush with the process piping wall. Typically applied to applications such as head boxes in pulp and paper mills, flush mounting eliminates the possibility of clogging. In addition, the transmitter mounting facilitates rapid and trouble free replacement. The SmartLine

family is also fully tested and compliant with Experion® PKS providing the highest level of compatibility assurance and integration capabilities. SmartLine easily meets the most demanding application needs for pressure measurement applications.

Best in Class Features:

• Flush mounting design.

• Accuracies up to 0.065 % of span standard & 0.04%

of span optional.

• Stability up to 0.020% of URL per year for 10 years.

• Automatic temperature compensation.

• Rangeability up to 100:1.

• Response times as fast as 100ms.

• Multiple local display capabilities.

• External zero, span, & configuration capability.

• Polarity insensitive electrical connections.

• Comprehensive on-board diagnostic capabilities.

• Integral Dual Seal design for safety based on

ANSI/NFPA 70-202 and ANSI/ISA 12.27.0.

• Full compliance to SIL 2/3 requirements.

• Modular design characteristics.

• Available with additional 4-year warranty

Communications/Output Options:

• Honeywell Digitally Enhanced (DE)

• HART ® (version 7.0)

Smartline ST700 Flush Mount Pressure Transmitter for direct insertion in processes with the use of a 1” sleeve, welded into the process line. It is primarily used for pressure measurement in the head box of pulp and paper plants.

The Flush Mount Pressure Transmitter, is available in ranges from 0-1 to 0-100 psig and can be installed in a variety of hazardous locations. The flush mounting capability eliminates the possibility of clogging while the insertion design makes the transmitter change out rapid and trouble-free.

The cost-effective transmitter provides:

Reference accuracy = 0.065%

100 ms response time

Stability = +/-0.025% per year

All transmitters are available with the above listed communications protocols.
